一、Why analyze the application of vibration sensors in beverage manufacturing?

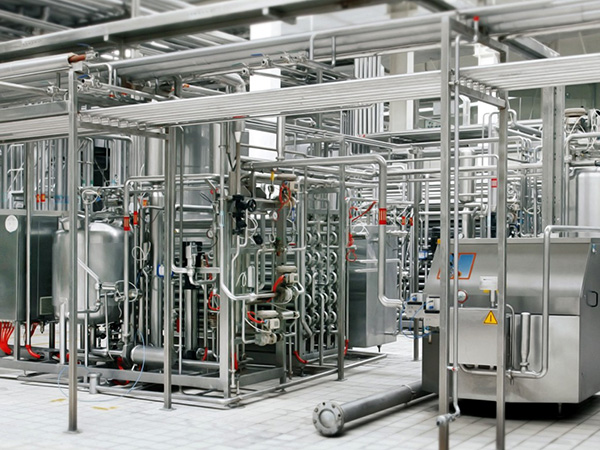

Industry status of beverage manufacturing line: Beverage manufacturing industry is a rapidly developing industry, as people's demand for healthy drinks increases, the beverage market is also expanding. Beverage production line is the core equipment of beverage manufacturing, including raw material processing, mixing, filling, sealing and other links;In these different links, the equipment carries a larger production capacity, and in the future, with the continuous increase of labor costs, the equipment will have higher and higher requirements for unmanned monitoring and early warning. Therefore, the current beverage production line needs to be greatly improved in terms of automation, production efficiency and product quality.
二、Rotating equipment and operation maintenance involved in beverage manufacturing production lines:
The rotating equipment involved in the beverage production line includes mixer, conveyor belt, filling machine, sealing machine, etc.These devices are usually regularly maintained, such as regularly changing lubricating oil, cleaning equipment, and checking the operating status of equipment. However, there are some problems with this maintenance method, such as the inability to detect equipment failures in time and the inability to predict equipment life.
三、Senther Technology what are the solutions to the above problem?
Senther Technology aiming at the problem of vibration state monitoring of rotating equipment in beverage production line, a solution is provided. Through the installation of vibration sensors and intelligent vibration edge gateway, the vibration state of the equipment can be monitored in real time, and the data analysis and processing can be carried out through the cloud platform,application analysis of vibration sensor in beverage manufacturing.
四、Senther Technology sensor recommendation：
310A vibration sensor Features and performance: The 310A series is an IEPE acceleration sensor for industrial vibration measurement, which is characterized by the use of toroidal shear mode ceramic crystals as sensitive elements, with long-term stability of the output characteristics.The internal circuit of the acceleration sensor is to provide constant current source excitation and transmit low impedance voltage output signal on the two-wire system of IEPE, and the signal ground is internally shielded and isolated from the housing. At the same time, the signal amplifying circuit design considers polarity reverse protection.The shell adopts laser welding process to ensure the tightness of the product; The output connector adopts the standard MIL-C-5015 glass insulated connector to meet the stability of the output under different environments.At the same time, the 310A series acceleration sensor supports adhesive installation and also supports the solid installation of 1/4-28 threaded holes.The 310A series acceleration sensors have wide band response and shock resistance, so the 310A is definitely an ideal acceleration sensor for industrial vibration monitoring and measurement in harsh environments.
310AT temperature and vibration sensor features and performance: temperature and vibration integrated, corrosion resistance, metal seal welding, enclosure isolation, EMI/RFI shielding, shock resistance.
IN addition to the above applications of sensor products, the most important thing is that Senther Technology provides pure hardware mode intelligent vibration edge computing gateway, IN-SDG intelligent vibration gateway & IN-LDG intelligent vibration gateway, with the support of the intelligent gateway, will make the vibration waveform of different types of rotating equipment, transmission devices become simple and easy to understand!And after the data passes through the intelligent vibration gateway, the transmission of the data becomes more efficient, reliable and clear, and there is no need to transmit each 10KHz data to the server, reducing the data storage pressure of the server and cloud space, and making more data operations close to the edge of the device.
五、How can the characteristics and performance of these sensors be more suitable for on-line vibration monitoring of different rotating equipment in beverage production lines?
The 310A vibration sensor from SentherTechnology features high precision, high sensitivity and low power consumption to monitor the vibration of equipment in real time. The 340A vibration sensor has a higher anti-interference ability and a wider range of applications.The 310AT temperature and vibration sensor can not only monitor vibration, but also monitor the temperature change of the equipment, providing more comprehensive information about the status of the equipment.
The characteristics and performance of these sensors make them more suitable for on-line vibration state monitoring of different rotating equipment in beverage production line. By monitoring the vibration of the equipment in real time, the equipment faults can be found in time, the life of the equipment can be predicted, and the reliability and stability of the equipment can be improved.
In addition to vibration sensors, how does Senther Technology's "intelligent vibration edge gateway that makes vibration easy to understand" analyze and process the vibration data of beverage manufacturing production line equipment and related equipment information, more efficiently ensure the stable operation of equipment and improve the long-term work efficiency of equipment?
Senther intelligent vibration edge gateway can collect the vibration data of beverage manufacturing line equipment in real time, and analyze and process it in real time through the built-in intelligent algorithm. Through the analysis of vibration data, the operating state of the equipment can be judged, the life of the equipment can be predicted, and the repair and maintenance can be carried out in advance.At the same time, the intelligent vibration edge gateway can also be linked with other devices to achieve intelligent management and optimal control of the equipment. By analyzing and processing vibration data and related equipment information, the stable operation of equipment can be ensured more efficiently and the long-term working efficiency of equipment can be improved.
