| Picture | Description | Range(±mm) | FSO(V) @3Vrms/12Vdc | 50% Range Linearity(%) | 100% Range Linearity(%) | 150% Range Linearity(%) | OD(mm) | Operation Temp. (°C) | Output Type | Probe Head | IP Level | Sensor Type | Excitation Frequency（Hz） | nput Impendance max. (ohm) | Output Impendance min.(ohm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

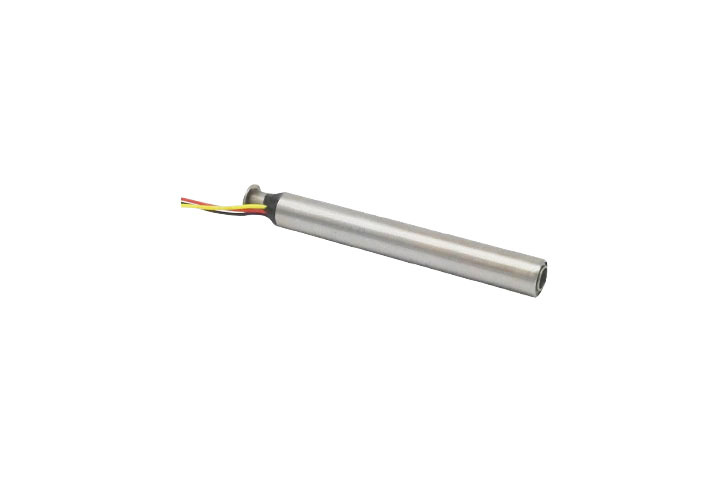

Description: Compact LVRT position transducer |
6 | 0.63 | 0.25 | 0.5 | 1 | 3.2 | -55 to 175℃ | AC | No | 0 | LVDT | 400 - 16000 | 75 | 100 |
|
Description: Heavy industrial LVDT position transducer |
5.08 | 1.49 | 0.1 | 0.25 | 1 | 20.6 | -55 to 125℃ | AC | No | 61 | LVDT | 400 - 16000 | 1150 | 4000 |
|
Description: LVDT position transducer |
50.8 | 1.39 | 0.15 | 0.25 | 4 | 20.6 | -55 to 125℃ | AC | No | 61 | LVDT | 400 - 16000 | 330 | 300 |
|

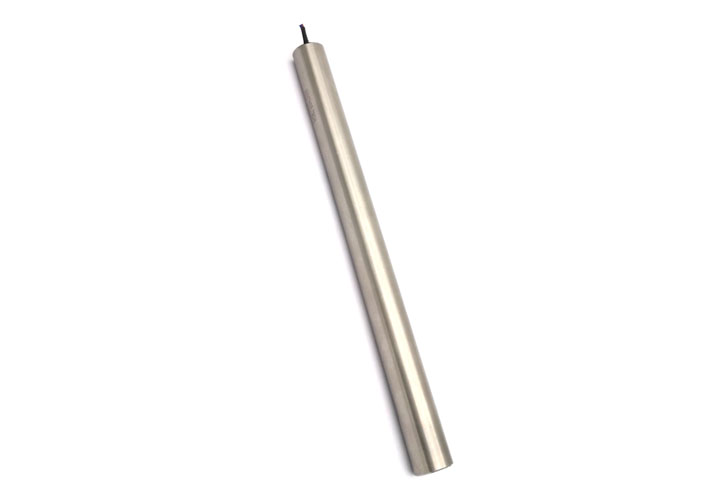

Description: Long stroke LVDT position transducer |
76.2 | 2.24 | 0.15 | 0.25 | 1 | 20.6 | -55 to 125℃ | AC | No | 61 | LVDT | 400 - 16000 | 315 | 830 |
|

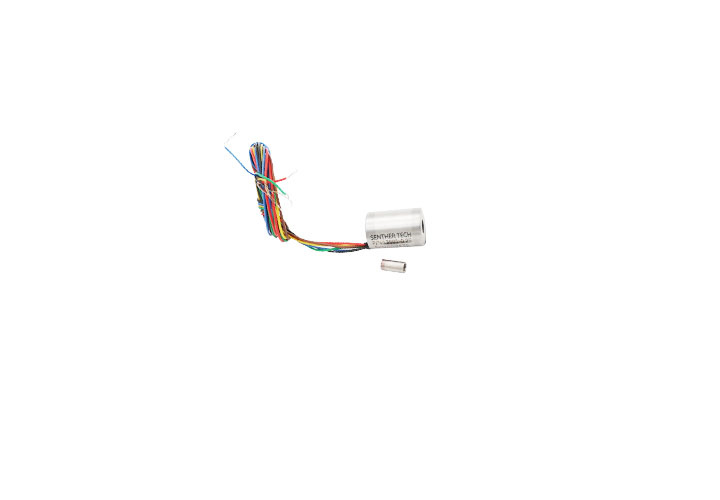

Description: LVDT position transducer |
0.25 | 0.1 | 0.15 | 0.25 | 1 | 9.5 | -55 to 125℃ | AC | No | 61 | LVDT | 400 - 16000 | 165 | 300 |
|

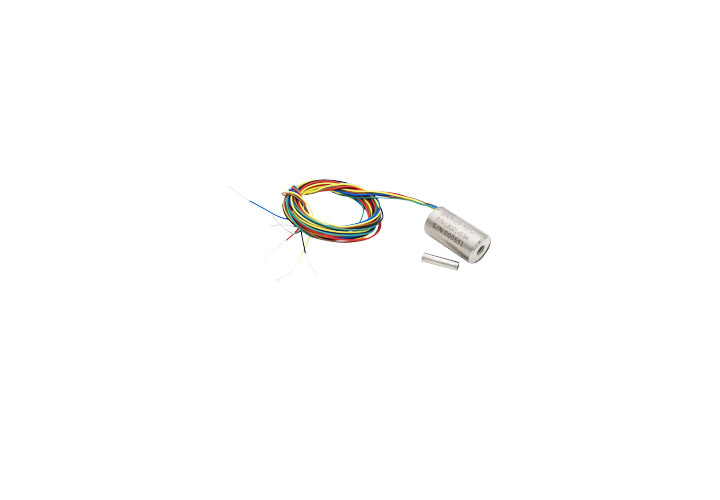

Description: LVDT position transducer |
0.64 | 0.33 | 0.15 | 0.25 | 1 | 9.5 | -55 to 125℃ | AC | No | 61 | LVDT | 400 - 16000 | 238 | 435 |
|

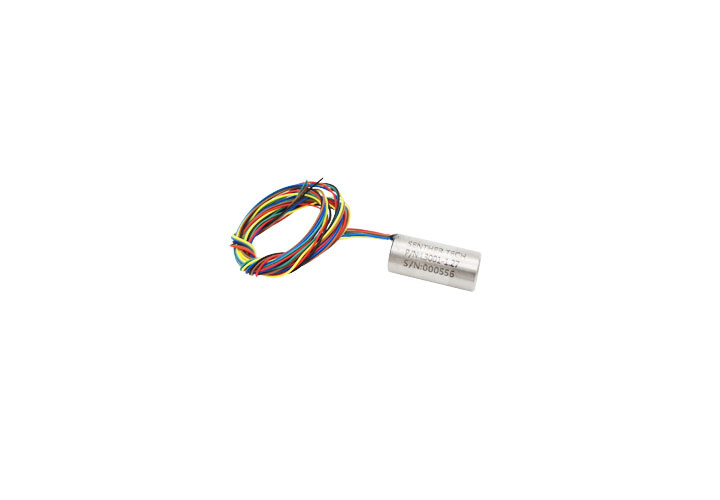

Description: LVDT position transducer |
1.27 | 0.38 | 0.15 | 0.25 | 1 | 9.5 | -55 to 125℃ | AC | No | 61 | LVDT | 400 - 16000 | 419 | 154 |
|

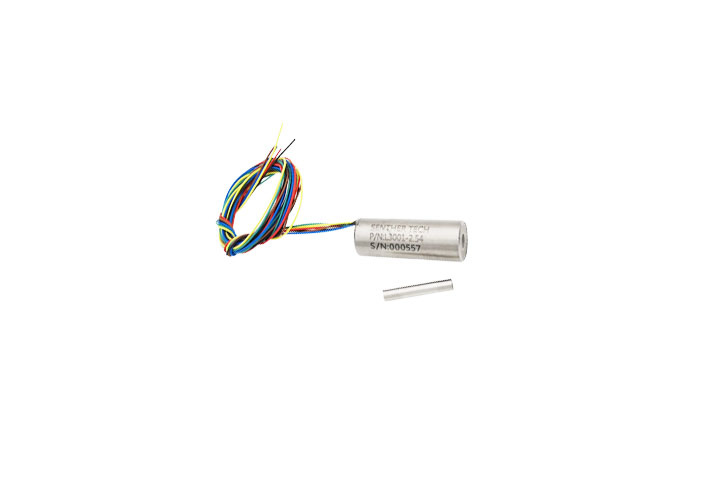

Description: LVDT position transducer |
2.54 | 0.72 | 0.15 | 0.25 | 1 | 9.5 | -55 to 125℃ | AC | No | 61 | LVDT | 400 - 16000 | 400 | 200 |
|

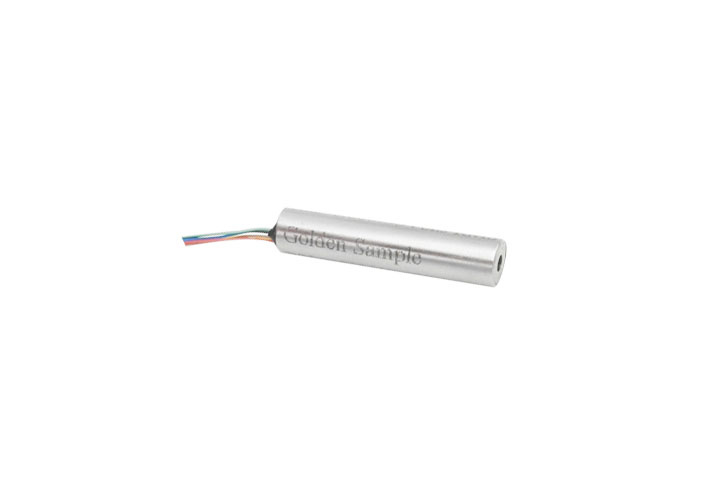

Description: LVDT position transducer |
6.35 | 1.3 | 0.15 | 0.25 | 1 | 9.5 | -55 to 125℃ | AC | No | 61 | LVDT | 400 - 16000 | 345 | 420 |
|

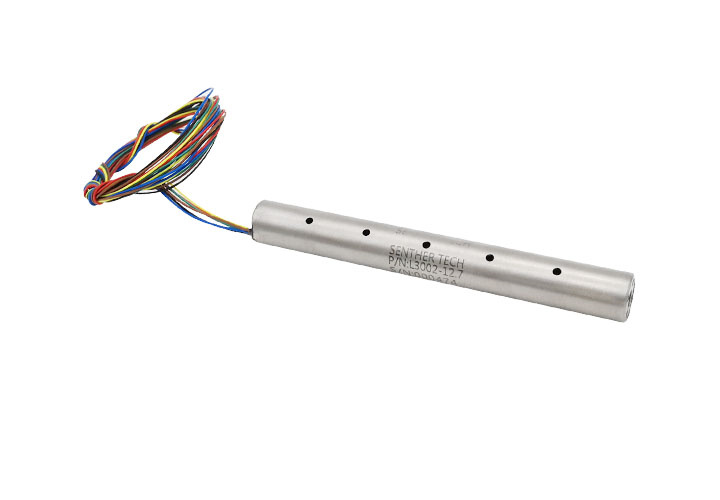

Description: LVDT position transducer |
12.7 | 2.4 | 0.15 | 0.25 | 1 | 9.5 | -55 to 125℃ | AC | No | 61 | LVDT | 400 - 16000 | 264 | 810 |
|

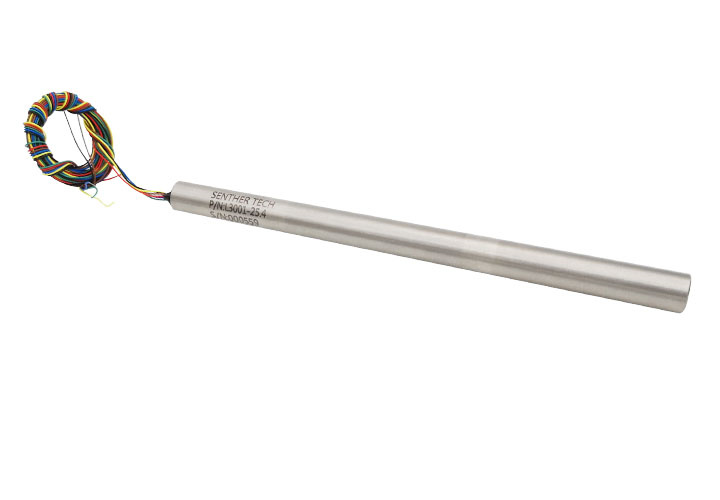

Description: LVDT position transducer |
25.4 | 2.06 | 0.15 | 0.25 | 1 | 9.5 | -55 to 125℃ | AC | No | 61 | LVDT | 400 - 16000 | 155 | 450 |
|

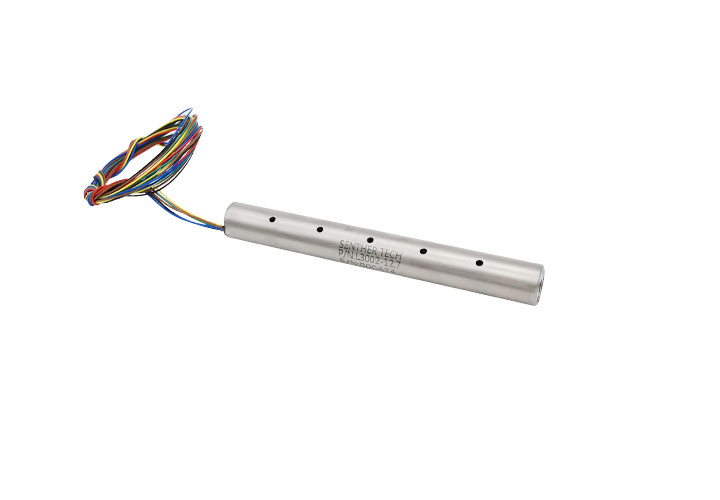

Description: LVDT position transducer |
12.7 | 2.4 | 0.15 | 0.25 | 1 | 9.5 | -55 to 125℃ | AC | No | 61 | LVDT | 400 - 16000 | 300 | 850 |
|
Description: DC voltage output LVDT transducer |
25.4 | 10 | 0.15 | 0.25 | 1 | 19.05 | -25 to 85℃ | DC | No | 65 | LVDT | N/A | N/A | N/A |
|

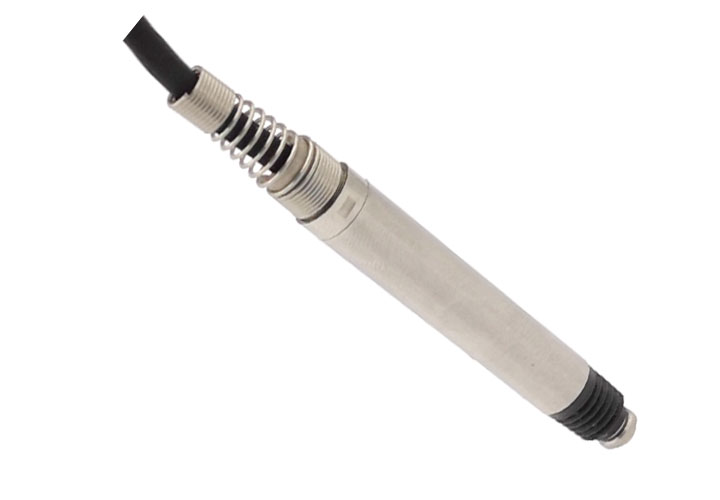

Description: Gage-head LVDT position transducer |
2.5 | 1.5 | 0.15 | 0.25 | 1 | 8 | -55 to 125℃ | AC | Yes | 65 | LVDT | 400 - 16000 | 360 | 250 |
|

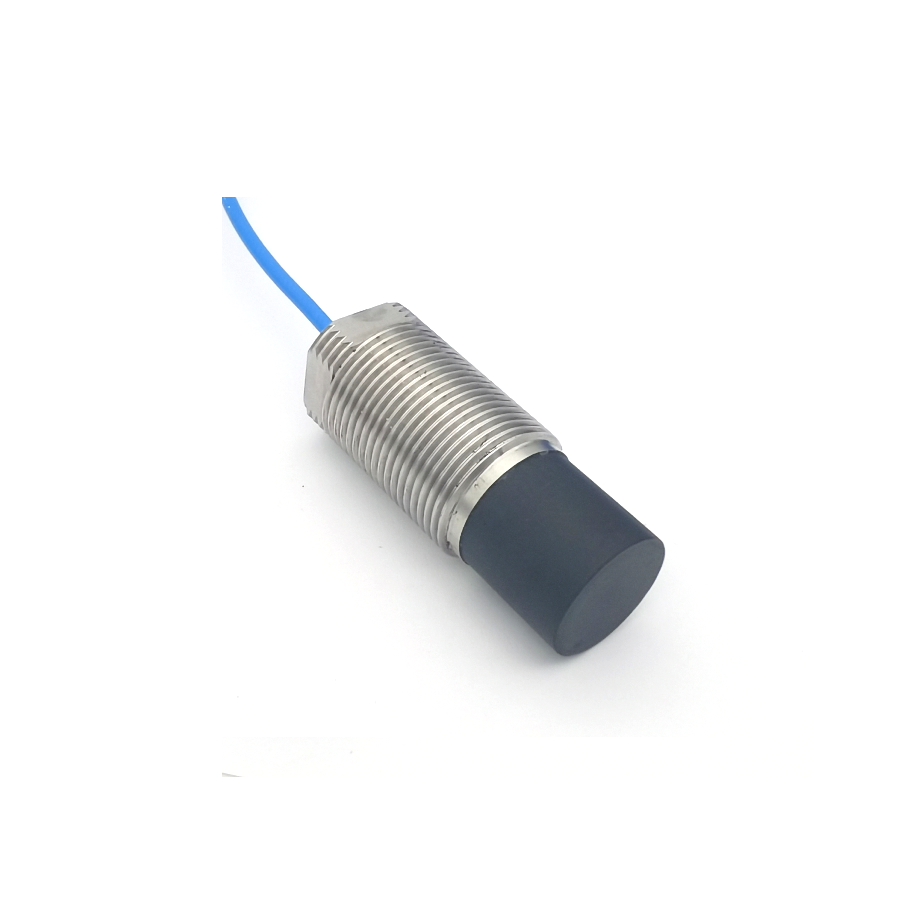

Description: Wide Range Proximity Transducer |
6 | 9.6 | 1 | 1 | 5 | 27 | –55 to 150℃ | DC | Yes | 67 | Eddy Current Sensor | N/A | N/A | N/A |
|

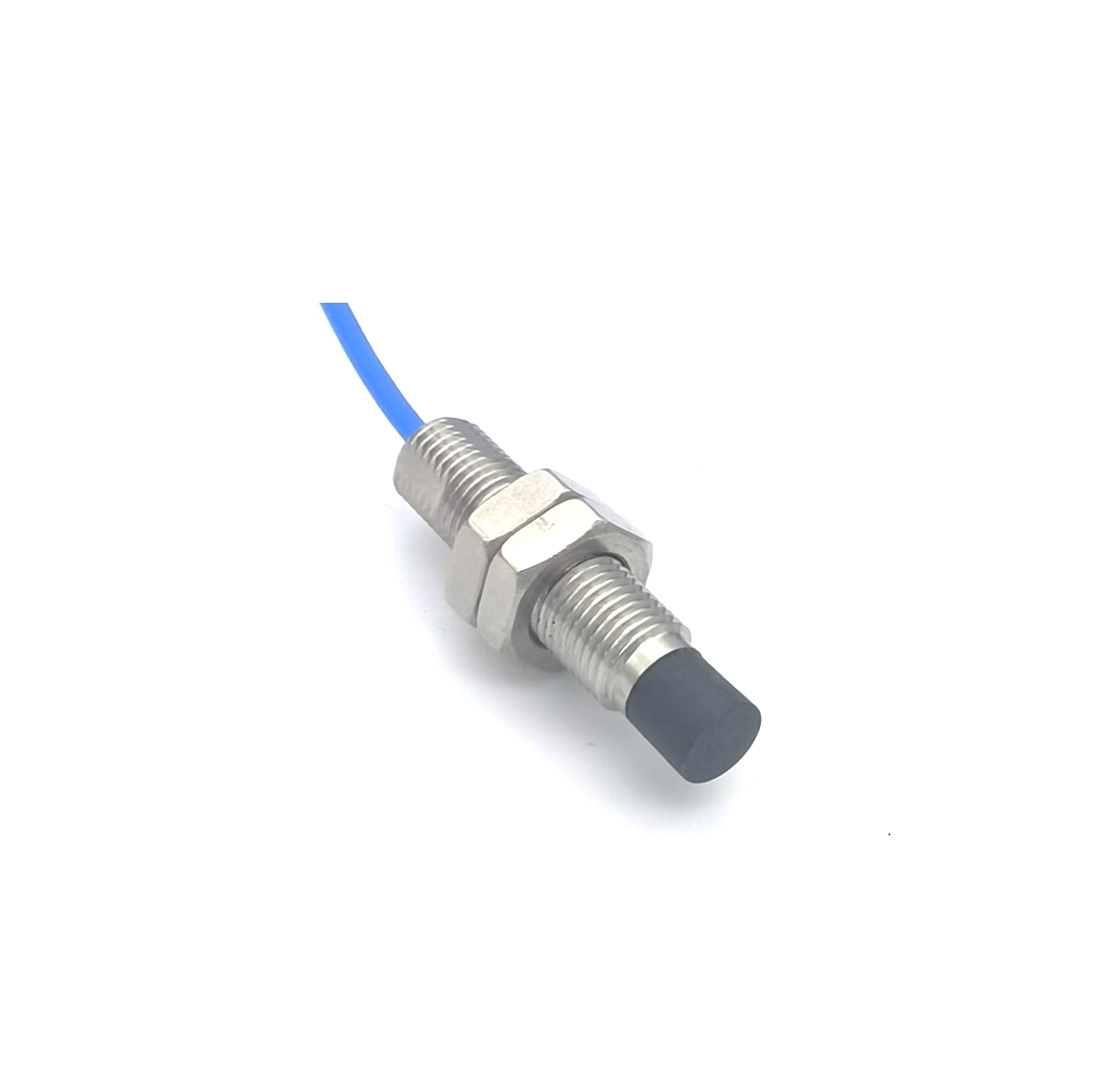

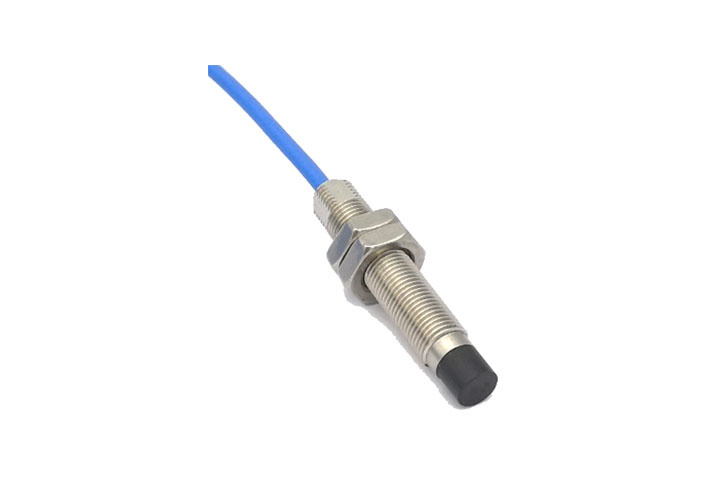

Description: Precision Proximity Transducer |
2 | 16 | 1 | 1 | 5 | 11 | –55 to 150℃ | DC | Yes | 67 | Eddy Current Sensor | N/A | N/A | N/A |
|

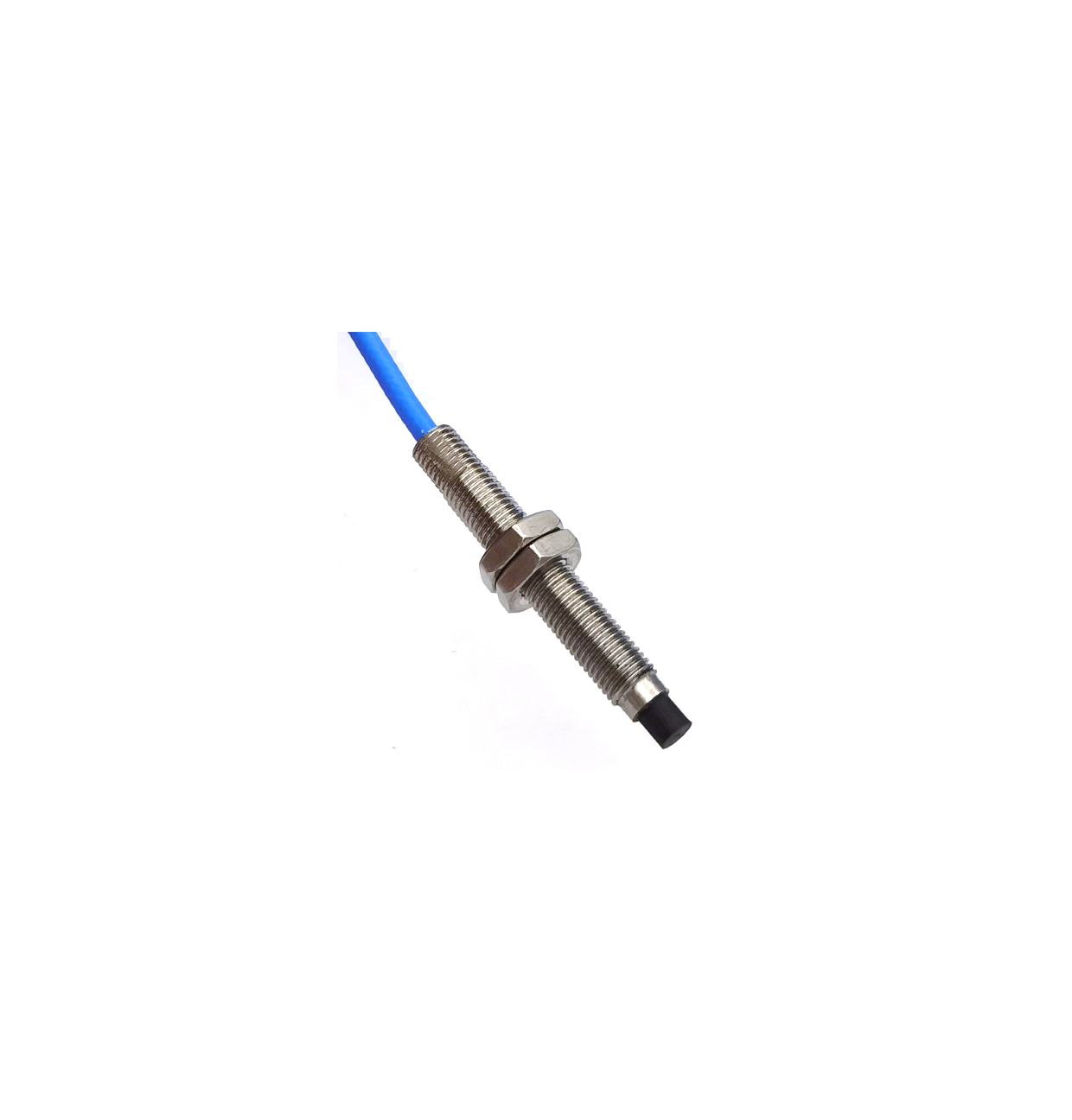

Description: Precision Proximity Transducer |
0.5 | 8 | 1 | 1 | 5 | 5.5 | –55 to 150℃ | DC | Yes | 67 | Eddy Current Sensor | N/A | N/A | N/A |
|
Description: Precision Proximity Transducer |
1 | 16 | 1 | 1 | 5 | 8 | –55 to 150℃ | DC | Yes | 67 | Eddy Current Sensor | N/A | N/A | N/A |
|

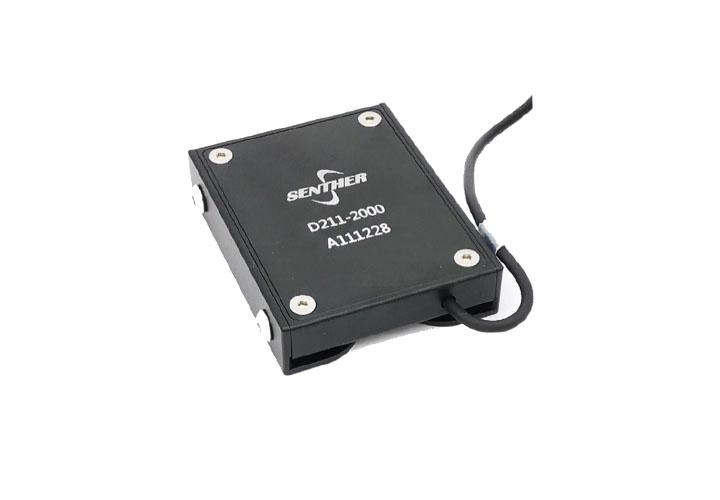

Description: Belt displacement transducer |
2000 | 4 | 0 | 1 | 1 | 0 | 0 to 70℃ | DC | No | 65 | Optical Sensor | N/A | N/A | 100 |
