Picture Description Range(PSI) Range(Bar) Range(mbar) Accuracy BFSL(%FS) Stability(±% FS/year) Operation Temp.(°C) Pressure Type Output Media IP Level Sensor Type Excitation(Vdc)

0

20000

0

2000

0

689655

0.1

0.5

0.1

0.5

-100

650

Model: P2101-1

Description: High accuracy MEMS pressure sensor, Board level

0 0 1 0.25 0.5 -40 to 125℃ Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2101-5

Description: High accuracy MEMS pressure sensor, Board level

0 0 5 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2101-10

Description: High accuracy MEMS pressure sensor, Board level

0 0 10 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2101-15

Description: High accuracy MEMS pressure sensor, Board level

0 0 15 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2101-25

Description: High accuracy MEMS pressure sensor, Board level

0 0 25 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2101-50

Description: High accuracy MEMS pressure sensor, Board level

0 0 50 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2101-75

Description: High accuracy MEMS pressure sensor, Board level

0 0 75 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2102-1

Description: High accuracy MEMS pressure sensor, PCB packaged

0 0 1 0.25 0.5 -40 to 125℃ Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2102-5

Description: High accuracy MEMS pressure sensor, PCB packaged

0 0 5 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2102-10

Description: High accuracy MEMS pressure sensor, PCB packaged

0 0 10 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2102-15

Description: High accuracy MEMS pressure sensor, PCB packaged

0 0 15 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2102-25

Description: High accuracy MEMS pressure sensor, PCB packaged

0 0 25 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2102-50

Description: High accuracy MEMS pressure sensor, PCB packaged

0 0 50 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2102-75

Description: High accuracy MEMS pressure sensor, PCB packaged

0 0 75 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

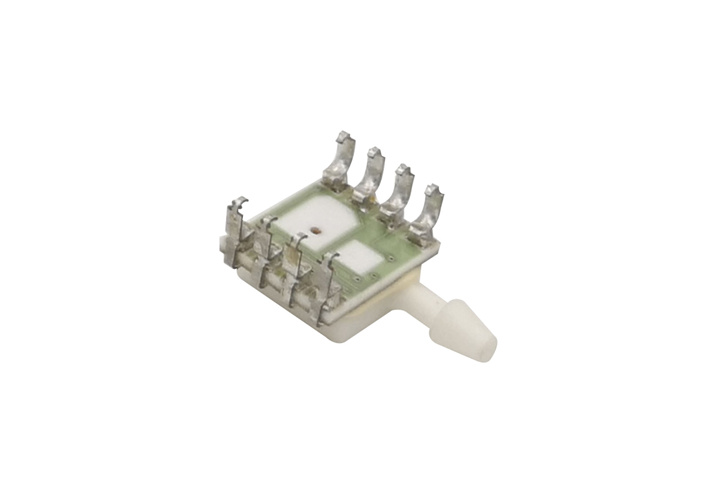

Model: P2101R-1

Description: Digital output MEMS pressure sensor, Board level

0 0 1 0.25 0.5 -40 to 125℃ Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2101R-5

Description: Digital output MEMS pressure sensor, Board level

0 0 5 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2101R-10

Description: Digital output MEMS pressure sensor, Board level

0 0 10 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2101R-15

Description: Digital output MEMS pressure sensor, Board level

0 0 15 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2101R-25

Description: Digital output MEMS pressure sensor, Board level

0 0 25 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2101R-50

Description: Digital output MEMS pressure sensor, Board level

0 0 50 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2101R-75

Description: Digital output MEMS pressure sensor, Board level

0 0 75 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

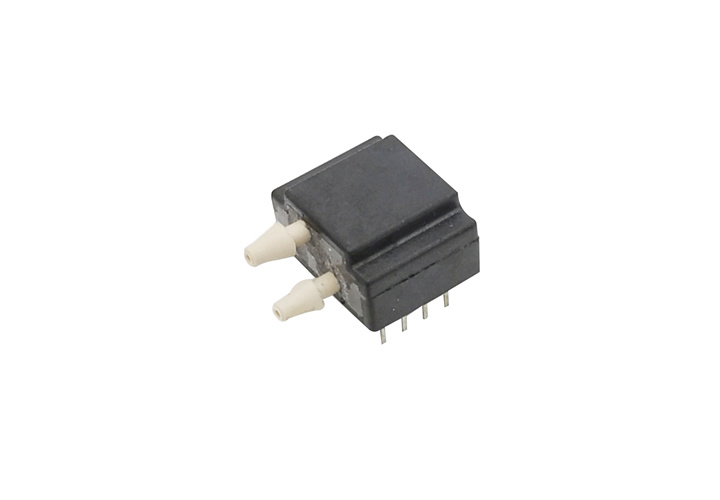

Model: P2102R-1

Description: Digital output MEMS pressure sensor, PCB packaged

0 0 1 0.25 0.5 -40 to 125℃ Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2102R-5

Description: Digital output MEMS pressure sensor, PCB packaged

0 0 5 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2102R-10

Description: Digital output MEMS pressure sensor, PCB packaged

0 0 10 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2102R-15

Description: Digital output MEMS pressure sensor, PCB packaged

0 0 15 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2102R-25

Description: Digital output MEMS pressure sensor, PCB packaged

0 0 25 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2102R-50

Description: Digital output MEMS pressure sensor, PCB packaged

0 0 50 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2102R-75

Description: Digital output MEMS pressure sensor, PCB packaged

0 0 75 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2103-1

Description: High accuracy MEMS pressure sensor, Tube port

0 0 1 0.25 0.5 -40 to 125℃ Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2103-5

Description: High accuracy MEMS pressure sensor, Tube port

0 0 5 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2103-10

Description: High accuracy MEMS pressure sensor, Tube port

0 0 10 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2103-15

Description: High accuracy MEMS pressure sensor, Tube port

0 0 15 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2103-25

Description: High accuracy MEMS pressure sensor, Tube port

0 0 25 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2103-50

Description: High accuracy MEMS pressure sensor, Tube port

0 0 50 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2103-75

Description: High accuracy MEMS pressure sensor, Tube port

0 0 75 0.25 0.5 -40 to 125℃ Gauge,Differential 0~5V Gas N/A MEMS 3~5.25

Model: P2103R-1

Description: Digital output MEMS pressure sensor, Tube port

0 0 1 0.25 0.5 -40 to 125℃ Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2103R-5

Description: Digital output MEMS pressure sensor, Tube port

0 0 5 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2103R-10

Description: Digital output MEMS pressure sensor, Tube port

0 0 10 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2103R-15

Description: Digital output MEMS pressure sensor, Tube port

0 0 15 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2103R-25

Description: Digital output MEMS pressure sensor, Tube port

0 0 25 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2103R-50

Description: Digital output MEMS pressure sensor, Tube port

0 0 50 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2103R-75

Description: Digital output MEMS pressure sensor, Tube port

0 0 75 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2104-5

Description: TO-8 packaged pressure sensor

5 0 0 0.1 0.1 -40 to 125℃ Gauge,Differential,Absolute mV Gas N/A MEMS 0.5~2 mA

Model: P2104-15

Description: TO-8 packaged pressure sensor

15 0 0 0.1 0.1 -40 to 125℃ Gauge,Differential,Absolute mV Gas N/A MEMS 0.5~2 mA

Model: P2104-30

Description: TO-8 packaged pressure sensor

30 0 0 0.1 0.1 -40 to 125℃ Gauge,Differential,Absolute mV Gas N/A MEMS 0.5~2 mA

Model: P2104-50

Description: TO-8 packaged pressure sensor

50 0 0 0.1 0.1 -40 to 125℃ Gauge,Differential,Absolute mV Gas N/A MEMS 0.5~2 mA

Model: P2104-100

Description: TO-8 packaged pressure sensor

100 0 0 0.1 0.1 -40 to 125℃ Gauge,Differential,Absolute mV Gas N/A MEMS 0.5~2 mA

Model: P2104-250

Description: TO-8 packaged pressure sensor

250 0 0 0.1 0.1 -40 to 125℃ Gauge,Differential,Absolute mV Gas N/A MEMS 0.5~2 mA

Model: P2105-2

Description: Piezoresistive MEMS pressure sensor, Board level OEM

2 0 0 0.3 0.5 -40 to 125℃ Gauge mV Gas N/A MEMS 4.75~5.25

Model: P2105-5

Description: Piezoresistive MEMS pressure sensor, Board level OEM

5 0 0 0.3 0.5 -40 to 125℃ Gauge mV Gas N/A MEMS 4.75~5.25

Model: P2105-15

Description: Piezoresistive MEMS pressure sensor, Board level OEM

15 0 0 0.3 0.5 -40 to 125℃ Gauge,Absolute mV Gas N/A MEMS 4.75~5.25

Model: P2105-30

Description: Piezoresistive MEMS pressure sensor, Board level OEM

30 0 0 0.3 0.5 -40 to 125℃ Gauge,Absolute mV Gas N/A MEMS 4.75~5.25

Model: P2105-50

Description: Piezoresistive MEMS pressure sensor, Board level OEM

50 0 0 0.3 0.5 -40 to 125℃ Gauge,Absolute mV Gas N/A MEMS 4.75~5.25

Model: P2105-100

Description: Piezoresistive MEMS pressure sensor, Board level OEM

100 0 0 0.3 0.5 -40 to 125℃ Gauge,Absolute mV Gas N/A MEMS 4.75~5.25

Model: P2105-250

Description: Piezoresistive MEMS pressure sensor, Board level OEM

250 0 0 0.3 0.5 -40 to 125℃ Gauge,Absolute mV Gas N/A MEMS 4.75~5.25

Model: P2105-300

Description: Piezoresistive MEMS pressure sensor, Board level OEM

300 0 0 0.3 0.5 -40 to 125℃ Gauge,Absolute mV Gas N/A MEMS 4.75~5.25

Model: P2106R-1

Description: Precision digital output MEMS pressure sensor

1 0 0 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2106R-2

Description: Precision digital output MEMS pressure sensor

2 0 0 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2106R-5

Description: Precision digital output MEMS pressure sensor

5 0 0 0.25 0.5 -40 to 125℃ Gauge,Differential I2C,SPI Gas N/A MEMS 3~5.25

Model: P2106R-15

Description: Precision digital output MEMS pressure sensor

15 0 0 0.25 0.5 -40 to 125℃ Gauge,Differential,Absolute I2C,SPI Gas N/A MEMS 3~5.25

Model: P2106R-30

Description: Precision digital output MEMS pressure sensor

30 0 0 0.25 0.5 -40 to 125℃ Gauge,Differential,Absolute I2C,SPI Gas N/A MEMS 3~5.25

Model: P2106R-50

Description: Precision digital output MEMS pressure sensor

50 0 0 0.25 0.5 -40 to 125℃ Gauge,Differential,Absolute I2C,SPI Gas N/A MEMS 3~5.25

Model: P2106R-100

Description: Precision digital output MEMS pressure sensor

100 0 0 0.25 0.5 -40 to 125℃ Gauge,Differential,Absolute I2C,SPI Gas N/A MEMS 3~5.25

Model: P2106R-150

Description: Precision digital output MEMS pressure sensor

150 0 0 0.25 0.5 -40 to 125℃ Gauge,Differential,Absolute I2C,SPI Gas N/A MEMS 3~5.25

Model: P2106R-300

Description: Precision digital output MEMS pressure sensor

300 0 0 0.25 0.5 -40 to 125℃ Gauge,Differential,Absolute I2C,SPI Gas N/A MEMS 3~5.25

Model: P2106R-500

Description: Precision digital output MEMS pressure sensor

500 0 0 0.25 0.5 -40 to 125℃ Gauge,Differential,Absolute I2C,SPI Gas N/A MEMS 3~5.25

Model: P2401-0.4

Description: MEMS pressure sensing element

0 0.4 0 0.15 0.2 -40 to 125℃ Gauge mV Gas N/A MEMS 4.75~5.25

Model: P2401-1

Description: MEMS pressure sensing element

0 1 0 0.15 0.2 -40 to 125℃ Gauge mV Gas N/A MEMS 4.75~5.25

Model: P2401-1.6

Description: MEMS pressure sensing element

0 1.6 0 0.15 0.2 -40 to 125℃ Gauge mV Gas N/A MEMS 4.75~5.25

Model: P2401-4

Description: MEMS pressure sensing element

0 4 0 0.15 0.2 -40 to 125℃ Gauge mV Gas N/A MEMS 4.75~5.25

Model: P2401-6

Description: MEMS pressure sensing element

0 6 0 0.15 0.2 -40 to 125℃ Gauge mV Gas N/A MEMS 4.75~5.25

Model: P2401-10

Description: MEMS pressure sensing element

0 10 0 0.15 0.2 -40 to 125℃ Gauge mV Gas N/A MEMS 4.75~5.25

Model: P2401-16

Description: MEMS pressure sensing element

0 16 0 0.15 0.2 -40 to 125℃ Gauge mV Gas N/A MEMS 4.75~5.25

Model: P2401-25

Description: MEMS pressure sensing element

0 25 0 0.15 0.2 -40 to 125℃ Gauge mV Gas N/A MEMS 4.75~5.25

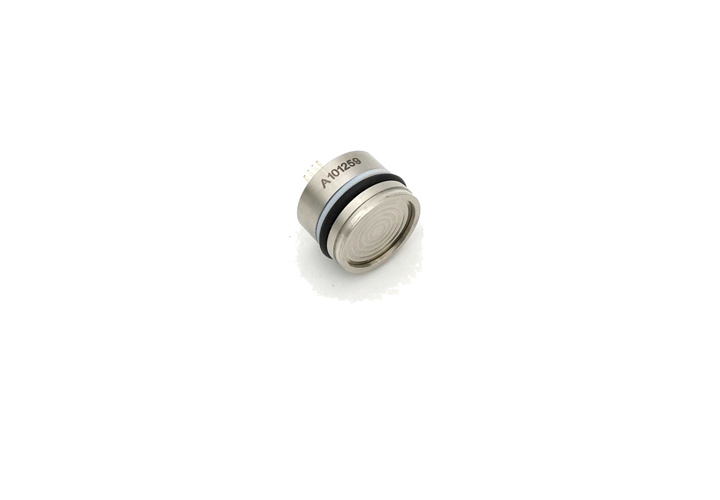

Model: P3401-0.4

Description: Oil filled piezo-resistive pressure sensing Element

0 0.4 0 0.2 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P1401-1

Description: Industrial pressure sensor element

1000 68.96599999999999 68966 0.2 0.1 -40 to 150℃ Absolute,Sealed gauge mV Oil,Water,Gas N/A Pressure transducer 5~15

Model: P1401-3

Description: Industrial pressure sensor element

3000 206.897 206897 0.2 0.1 -40 to 150℃ Absolute,Sealed gauge mV Oil,Water,Gas N/A Pressure transducer 5~15

Model: P1401-5

Description: Industrial pressure sensor element

5000 344.828 344828 0.2 0.1 -40 to 150℃ Absolute,Sealed gauge mV Oil,Water,Gas N/A Pressure transducer 5~15

Model: P1401-10

Description: Industrial pressure sensor element

10000 689.655 689655 0.2 0.1 -40 to 150℃ Absolute,Sealed gauge mV Oil,Water,Gas N/A Pressure transducer 5~15

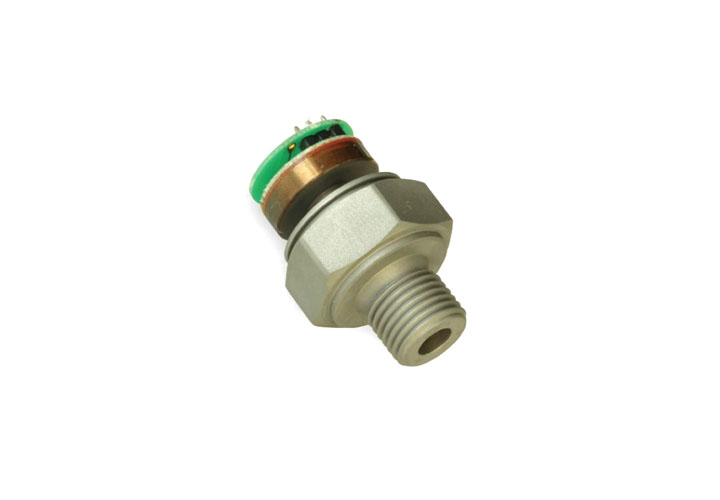

Model: P1541-3.5

Description: Heavy Industry Pressure Sensing Element

0 3.5 0 0.3 0.1 -40 to 150℃ Gauge mV Oil,Water,Gas N/A Pressure transducer 5~15

Model: P1541-10

Description: Heavy Industry Pressure Sensing Element

0 10 0 0.3 0.1 -40 to 125℃ Gauge mV Oil,Water,Gas N/A Pressure transducer 5~15

Model: P1541-100

Description: Heavy Industry Pressure Sensing Element

0 100 0 0.3 0.1 -40 to 125℃ Gauge mV Oil,Water,Gas N/A Pressure transducer 5~15

Model: P1541-2000

Description: Heavy Industry Pressure Sensing Element

0 2000 0 0.3 0.1 -40 to 125℃ Gauge mV Oil,Water,Gas N/A Pressure transducer 5~15

Model: P3401-1

Description: Oil filled piezo-resistive pressure sensing Element

0 1 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3401-1.6

Description: Oil filled piezo-resistive pressure sensing Element

0 1.6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3401-4

Description: Oil filled piezo-resistive pressure sensing Element

0 4 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3401-6

Description: Oil filled piezo-resistive pressure sensing Element

0 6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3401-10

Description: Oil filled piezo-resistive pressure sensing Element

0 10 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3401-16

Description: Oil filled piezo-resistive pressure sensing Element

0 16 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3401-25

Description: Oil filled piezo-resistive pressure sensing Element

0 25 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3401-40

Description: Oil filled piezo-resistive pressure sensing Element

0 40 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3401-70

Description: Oil filled piezo-resistive pressure sensing Element

0 70 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3401A-0.4

Description: Oil filled piezo-resistive pressure sensing, Current excitation Element

0 0.4 0 0.2 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3401A-1

Description: Oil filled piezo-resistive pressure sensing, Current excitation Element

0 1 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3401A-1.6

Description: Oil filled piezo-resistive pressure sensing, Current excitation Element

0 1.6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3401A-4

Description: Oil filled piezo-resistive pressure sensing, Current excitation Element

0 4 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3401A-6

Description: Oil filled piezo-resistive pressure sensing, Current excitation Element

0 6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3401A-10

Description: Oil filled piezo-resistive pressure sensing, Current excitation Element

0 10 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3401A-16

Description: Oil filled piezo-resistive pressure sensing, Current excitation Element

0 16 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3401A-25

Description: Oil filled piezo-resistive pressure sensing, Current excitation Element

0 25 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3401A-40

Description: Oil filled piezo-resistive pressure sensing, Current excitation Element

0 40 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3401A-70

Description: Oil filled piezo-resistive pressure sensing, Current excitation Element

0 70 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

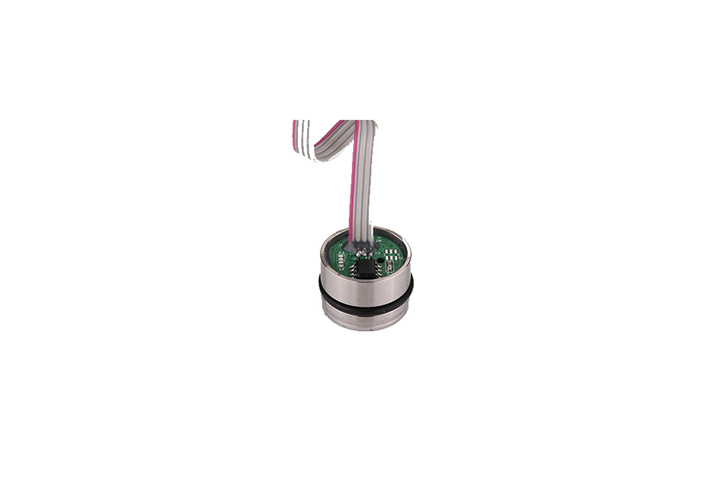

Model: P3401R-0.4

Description: Oil filled piezo-resistive pressure sensing, Digital output

0 0.4 0 0.2 0.5 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube I2C,SPI Oil,Water,Gas N/A Oil filled pressure element 2.7~5.5

Model: P3401R-1

Description: Oil filled piezo-resistive pressure sensing, Digital output

0 1 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube I2C,SPI Oil,Water,Gas N/A Oil filled pressure element 2.7~5.5

Model: P3401R-1.6

Description: Oil filled piezo-resistive pressure sensing, Digital output

0 1.6 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute I2C,SPI Oil,Water,Gas N/A Oil filled pressure element 2.7~5.5

Model: P3401R-4

Description: Oil filled piezo-resistive pressure sensing, Digital output

0 4 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute I2C,SPI Oil,Water,Gas N/A Oil filled pressure element 2.7~5.5

Model: P3401R-6

Description: Oil filled piezo-resistive pressure sensing, Digital output

0 6 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute I2C,SPI Oil,Water,Gas N/A Oil filled pressure element 2.7~5.5

Model: P3401R-10

Description: Oil filled piezo-resistive pressure sensing, Digital output

0 10 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute I2C,SPI Oil,Water,Gas N/A Oil filled pressure element 2.7~5.5

Model: P3401R-16

Description: Oil filled piezo-resistive pressure sensing, Digital output

0 16 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute I2C,SPI Oil,Water,Gas N/A Oil filled pressure element 2.7~5.5

Model: P3401R-25

Description: Oil filled piezo-resistive pressure sensing, Digital output

0 25 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute I2C,SPI Oil,Water,Gas N/A Oil filled pressure element 2.7~5.5

Model: P3401R-40

Description: Oil filled piezo-resistive pressure sensing, Digital output

0 40 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute I2C,SPI Oil,Water,Gas N/A Oil filled pressure element 2.7~5.5

Model: P3401R-70

Description: Oil filled piezo-resistive pressure sensing, Digital output

0 70 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute I2C,SPI Oil,Water,Gas N/A Oil filled pressure element 2.7~5.5

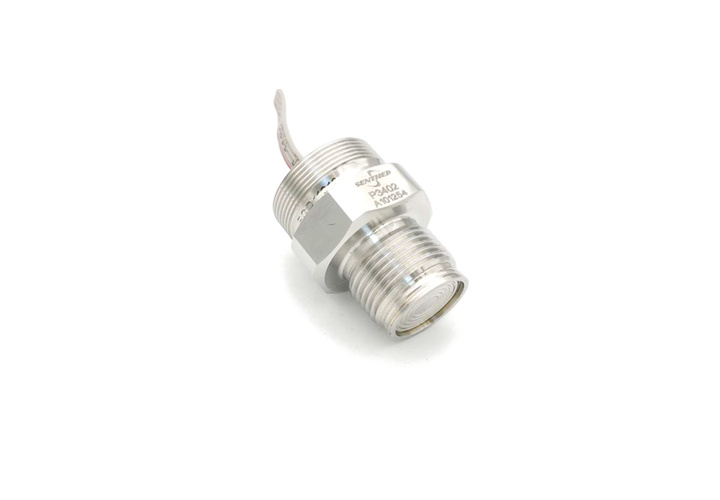

Model: P3402A-0.4

Description: Hexagon fitting oil filled pressure sensor, Current excitation

0 0.4 0 0.2 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3402A-1

Description: Hexagon fitting oil filled pressure sensor, Current excitation

0 1 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3402A-1.6

Description: Hexagon fitting oil filled pressure sensor, Current excitation

0 1.6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3402A-4

Description: Hexagon fitting oil filled pressure sensor, Current excitation

0 4 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3402A-6

Description: Hexagon fitting oil filled pressure sensor, Current excitation

0 6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3402A-10

Description: Hexagon fitting oil filled pressure sensor, Current excitation

0 10 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3402A-16

Description: Hexagon fitting oil filled pressure sensor, Current excitation

0 16 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3402A-25

Description: Hexagon fitting oil filled pressure sensor, Current excitation

0 25 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3402A-40

Description: Hexagon fitting oil filled pressure sensor, Current excitation

0 40 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3402A-70

Description: Hexagon fitting oil filled pressure sensor, Current excitation

0 70 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3403A-0.4

Description: Hexagon fitting oil filled pressure sensor, O-ring seal

0 0.4 0 0.2 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3403A-1

Description: Hexagon fitting oil filled pressure sensor, O-ring seal

0 1 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3403A-1.6

Description: Hexagon fitting oil filled pressure sensor, O-ring seal

0 1.6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3403A-4

Description: Hexagon fitting oil filled pressure sensor, O-ring seal

0 4 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3403A-6

Description: Hexagon fitting oil filled pressure sensor, O-ring seal

0 6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3403A-10

Description: Hexagon fitting oil filled pressure sensor, O-ring seal

0 10 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3403A-16

Description: Hexagon fitting oil filled pressure sensor, O-ring seal

0 16 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3403A-25

Description: Hexagon fitting oil filled pressure sensor, O-ring seal

0 25 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3403A-40

Description: Hexagon fitting oil filled pressure sensor, O-ring seal

0 40 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3403A-70

Description: Hexagon fitting oil filled pressure sensor, O-ring seal

0 70 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

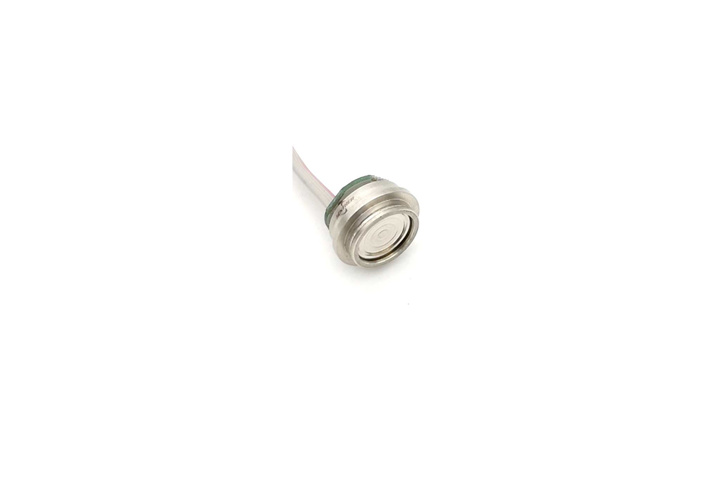

Model: P3405-0.4

Description: Port welded pressure sensing element

0 0.4 0 0.2 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3405-1

Description: Port welded pressure sensing element

0 1 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3405-1.6

Description: Port welded pressure sensing element

0 1.6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3405-4

Description: Port welded pressure sensing element

0 4 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3405-6

Description: Port welded pressure sensing element

0 6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3405-10

Description: Port welded pressure sensing element

0 10 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3405-16

Description: Port welded pressure sensing element

0 16 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3405-25

Description: Port welded pressure sensing element

0 25 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3405-40

Description: Port welded pressure sensing element

0 40 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3405-70

Description: Port welded pressure sensing element

0 70 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3405A-0.4

Description: Port welded pressure sensing element, Current excitation

0 0.4 0 0.2 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3405A-1

Description: Port welded pressure sensing element, Current excitation

0 1 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3405A-1.6

Description: Port welded pressure sensing element, Current excitation

0 1.6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3405A-4

Description: Port welded pressure sensing element, Current excitation

0 4 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3405A-6

Description: Port welded pressure sensing element, Current excitation

0 6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3405A-10

Description: Port welded pressure sensing element, Current excitation

0 10 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3405A-16

Description: Port welded pressure sensing element, Current excitation

0 16 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3405A-25

Description: Port welded pressure sensing element, Current excitation

0 25 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3405A-40

Description: Port welded pressure sensing element, Current excitation

0 40 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3405A-70

Description: Port welded pressure sensing element, Current excitation

0 70 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3406A-0.4

Description: Oil filled piezo-resistive pressure sensing, Current excitation, Pin output

0 0.4 0 0.2 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3406A-1

Description: Oil filled piezo-resistive pressure sensing, Current excitation, Pin output

0 1 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3406A-1.6

Description: Oil filled piezo-resistive pressure sensing, Current excitation, Pin output

0 1.6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3406A-4

Description: Oil filled piezo-resistive pressure sensing, Current excitation, Pin output

0 4 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3406A-6

Description: Oil filled piezo-resistive pressure sensing, Current excitation, Pin output

0 6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3406A-10

Description: Oil filled piezo-resistive pressure sensing, Current excitation, Pin output

0 10 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3406A-16

Description: Oil filled piezo-resistive pressure sensing, Current excitation, Pin output

0 16 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3406A-25

Description: Oil filled piezo-resistive pressure sensing, Current excitation, Pin output

0 25 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3406A-40

Description: Oil filled piezo-resistive pressure sensing, Current excitation, Pin output

0 40 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3406A-70

Description: Oil filled piezo-resistive pressure sensing, Current excitation, Pin output

0 70 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3407-0.4

Description: Port welded pressure sensing element, Hex 16 port

0 0.4 0 0.2 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3407-1

Description: Port welded pressure sensing element, Hex 16 port

0 1 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3407-1.6

Description: Port welded pressure sensing element, Hex 16 port

0 1.6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3407-4

Description: Port welded pressure sensing element, Hex 16 port

0 4 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3407-6

Description: Port welded pressure sensing element, Hex 16 port

0 6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3407-10

Description: Port welded pressure sensing element, Hex 16 port

0 10 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3407-16

Description: Port welded pressure sensing element, Hex 16 port

0 16 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3407-25

Description: Port welded pressure sensing element, Hex 16 port

0 25 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3407-40

Description: Port welded pressure sensing element, Hex 16 port

0 40 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3407-70

Description: Port welded pressure sensing element, Hex 16 port

0 70 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 10~14

Model: P3407A-0.4

Description: Port welded pressure sensing element, Current excitation

0 0.4 0 0.2 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3407A-1

Description: Hex 16 port welded pressure sensing element, Current excitation

0 1 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3407A-1.6

Description: Hex 16 port welded pressure sensing element, Current excitation

0 1.6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3407A-4

Description: Hex 16 port welded pressure sensing element, Current excitation

0 4 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3407A-6

Description: Hex 16 port welded pressure sensing element, Current excitation

0 6 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3407A-10

Description: Hex 16 port welded pressure sensing element, Current excitation

0 10 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3407A-16

Description: Hex 16 port welded pressure sensing element, Current excitation

0 16 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3407A-25

Description: Hex 16 port welded pressure sensing element, Current excitation

0 25 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3407A-40

Description: Hex 16 port welded pressure sensing element, Current excitation

0 40 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3407A-70

Description: Hex 16 port welded pressure sensing element, Current excitation

0 70 0 0.1 0.1 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute mV Oil,Water,Gas N/A Oil filled pressure element 0.5~2 mA

Model: P3420-0.4

Description: High accuracy pressure transmitter capsule

0 0.4 0 0.1 0.2 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube 0.5~4.5V,4~20mA,0~5V,I2C Oil,Water,Gas N/A Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc 3~5.25Vdc

Model: P3420-1

Description: High accuracy pressure transmitter capsule

0 1 0 0.1 0.2 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube 0.5~4.5V,4~20mA,0~5V,I2C Oil,Water,Gas N/A Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc 3~5.25Vdc

Model: P3420-1.6

Description: High accuracy pressure transmitter capsule

0 1.6 0 0.1 0.2 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute 0.5~4.5V,4~20mA,0~5V,I2C Oil,Water,Gas N/A Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc 3~5.25Vdc

Model: P3420-4

Description: High accuracy pressure transmitter capsule

0 4 0 0.1 0.2 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute 0.5~4.5V,4~20mA,0~5V,I2C Oil,Water,Gas N/A Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc 3~5.25Vdc

Model: P3420-6

Description: High accuracy pressure transmitter capsule

0 6 0 0.1 0.2 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute 0.5~4.5V,4~20mA,0~5V,I2C Oil,Water,Gas N/A Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc 3~5.25Vdc

Model: P3420-10

Description: High accuracy pressure transmitter capsule

0 10 0 0.1 0.2 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute 0.5~4.5V,4~20mA,0~5V,I2C Oil,Water,Gas N/A Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc 3~5.25Vdc

Model: P3420-16

Description: High accuracy pressure transmitter capsule

0 16 0 0.1 0.2 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute 0.5~4.5V,4~20mA,0~5V,I2C Oil,Water,Gas N/A Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc 3~5.25Vdc

Model: P3420-25

Description: High accuracy pressure transmitter capsule

0 25 0 0.1 0.2 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute 0.5~4.5V,4~20mA,0~5V,I2C Oil,Water,Gas N/A Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc 3~5.25Vdc

Model: P3420-40

Description: High accuracy pressure transmitter capsule

0 40 0 0.1 0.2 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute 0.5~4.5V,4~20mA,0~5V,I2C Oil,Water,Gas N/A Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc 3~5.25Vdc

Model: P3420-70

Description: High accuracy pressure transmitter capsule

0 70 0 0.1 0.2 -40 to 125℃ Gauge,Sealed gauge,Gauge pressure with vent Tube,Absolute 0.5~4.5V,4~20mA,0~5V,I2C Oil,Water,Gas N/A Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc 3~5.25Vdc

Model: P4401-30

Description: General Industrial Pressure Transducer, Connector output

30 0 0 0.1 0.5 -40 to 100℃ Gauge,Sealed gauge 0.5~4.5V,1~5V,0~5V Oil,Water,Gas 67 Ceramic pressure sensor 4.75~5.25Vdc 9~32Vdc 9~32Vdc

Model: P4401-50

Description: General Industrial Pressure Transducer, Connector output

50 0 0 0.1 0.5 -40 to 100℃ Gauge,Sealed gauge 0.5~4.5V,1~5V,0~5V Oil,Water,Gas 67 Ceramic pressure sensor 4.75~5.25Vdc 9~32Vdc 9~32Vdc

Model: P4401-75

Description: General Industrial Pressure Transducer, Connector output

75 0 0 0.1 0.5 -40 to 100℃ Gauge,Sealed gauge 0.5~4.5V,1~5V,0~5V Oil,Water,Gas 67 Ceramic pressure sensor 4.75~5.25Vdc 9~32Vdc 9~32Vdc

Model: P4401-150

Description: General Industrial Pressure Transducer, Connector output

150 0 0 0.1 0.5 -40 to 100℃ Gauge,Sealed gauge 0.5~4.5V,1~5V,0~5V Oil,Water,Gas 67 Ceramic pressure sensor 4.75~5.25Vdc 9~32Vdc 9~32Vdc

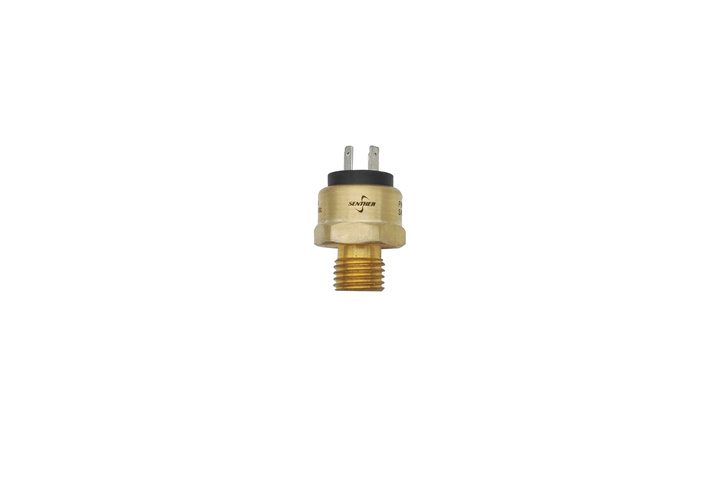

Model: P4402-30

Description: General Industrial Pressure Transducer, Pin output

30 0 0 0.1 0.5 -40 to 100℃ Gauge,Sealed gauge 0.5~4.5V,1~5V,0~5V Oil,Water,Gas 67 Ceramic pressure sensor 4.75~5.25Vdc 9~32Vdc 9~32Vdc

Model: P4402-50

Description: General Industrial Pressure Transducer, Pin output

50 0 0 0.1 0.5 -40 to 100℃ Gauge,Sealed gauge 0.5~4.5V,1~5V,0~5V Oil,Water,Gas 67 Ceramic pressure sensor 4.75~5.25Vdc 9~32Vdc 9~32Vdc

Model: P4402-75

Description: General Industrial Pressure Transducer, Pin output

75 0 0 0.1 0.5 -40 to 100℃ Gauge,Sealed gauge 0.5~4.5V,1~5V,0~5V Oil,Water,Gas 67 Ceramic pressure sensor 4.75~5.25Vdc 9~32Vdc 9~32Vdc

Model: P4402-150

Description: General Industrial Pressure Transducer, Pin output

150 0 0 0.1 0.5 -40 to 100℃ Gauge,Sealed gauge 0.5~4.5V,1~5V,0~5V Oil,Water,Gas 67 Ceramic pressure sensor 4.75~5.25Vdc 9~32Vdc 9~32Vdc

Model: P3501-0.4

Description: High accuracy pressure transmitter

0 0.4 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge 0.5~4.5V,4~20mA,0~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3501-1

Description: High accuracy pressure transmitter

0 1 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge 0.5~4.5V,4~20mA,0~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3501-1.6

Description: High accuracy pressure transmitter

0 1.6 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Absolute 0.5~4.5V,4~20mA,0~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3501-4

Description: High accuracy pressure transmitter

0 4 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Absolute 0.5~4.5V,4~20mA,0~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3501-6

Description: High accuracy pressure transmitter

0 6 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Absolute 0.5~4.5V,4~20mA,0~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3501-10

Description: High accuracy pressure transmitter

0 10 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Absolute 0.5~4.5V,4~20mA,0~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3501-16

Description: High accuracy pressure transmitter

0 16 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Absolute 0.5~4.5V,4~20mA,0~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3501-25

Description: High accuracy pressure transmitter

0 25 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Absolute 0.5~4.5V,4~20mA,0~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3501-40

Description: High accuracy pressure transmitter

0 40 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Absolute 0.5~4.5V,4~20mA,0~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3501-70

Description: High accuracy pressure transmitter

0 70 0 0.1 0.5 -40 to 125℃ Gauge,Sealed gauge,Absolute 0.5~4.5V,4~20mA,0~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3502-1

Description: High accuracy pressure transmitter, Integrated cable

0 1 0 0.1 0.5 -40 to 125℃ Gauge 0.5~4.5V,4~20mA,0~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3502-4

Description: High accuracy pressure transmitter, Integrated cable

0 4 0 0.1 0.5 -40 to 125℃ Gauge 0.5~4.5V,4~20mA,0~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3601-0.2

Description: High accuracy pressure transmitter, Compact size

0 0.2 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3601-0.6

Description: High accuracy pressure transmitter, Compact size

0 0.6 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3601-1.6

Description: High accuracy pressure transmitter, Compact size

0 1.6 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3601-4

Description: High accuracy pressure transmitter, Compact size

0 4 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3601-6

Description: High accuracy pressure transmitter, Compact size

0 6 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3601-10

Description: High accuracy pressure transmitter, Compact size

0 10 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3601-16

Description: High accuracy pressure transmitter, Compact size

0 16 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3601-25

Description: High accuracy pressure transmitter, Compact size

0 25 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3601-50

Description: High accuracy pressure transmitter, Compact size

0 50 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3601-70

Description: High accuracy pressure transmitter, Compact size

0 70 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3601-100

Description: High accuracy pressure transmitter, Compact size

0 100 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3601-200

Description: High accuracy pressure transmitter, Compact size

0 200 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3601-300

Description: High accuracy pressure transmitter, Compact size

0 300 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3602-0.2

Description: High accuracy pressure transmitter

0 0.2 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3602-0.6

Description: High accuracy pressure transmitter

0 0.6 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3602-1.6

Description: High accuracy pressure transmitter

0 1.6 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3602-4

Description: High accuracy pressure transmitter

0 4 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3602-6

Description: High accuracy pressure transmitter

0 6 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3602-10

Description: High accuracy pressure transmitter

0 10 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3602-16

Description: High accuracy pressure transmitter

0 16 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3602-25

Description: High accuracy pressure transmitter

0 25 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3602-50

Description: High accuracy pressure transmitter

0 50 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3602-70

Description: High accuracy pressure transmitter

0 70 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3602-100

Description: High accuracy pressure transmitter

0 100 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3602-200

Description: High accuracy pressure transmitter

0 200 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

Model: P3602-300

Description: High accuracy pressure transmitter

0 300 0 0.1 0.5 -20 to 85℃ Gauge 0.5~4.5V,4~20mA,1~5V Oil,Water,Gas 67 Oil filled pressure element 4.75~5.25Vdc 8~30Vdc 8~30Vdc

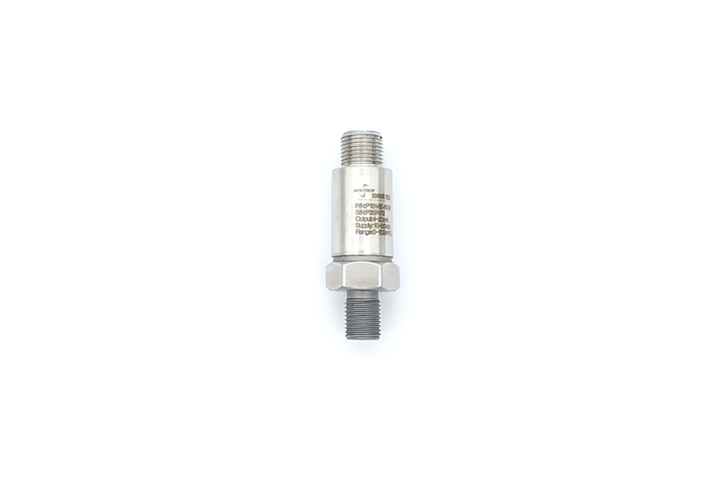

Model: P1514-3.5

Description: Heavy Industry Purpose Pressure Transducer, M10 Pressure Port

0 3.5 0 0.5 0.25 -20 to 125℃ Gauge 0.5~4.5V Oil,Water,Gas 66 Pressure transducer 8~32Vdc

Model: P1514-10

Description: Heavy Industry Purpose Pressure Transducer, M10 Pressure Port

0 10 0 0.5 0.25 -40 to 125℃ Gauge 0.5~4.5V Oil,Water,Gas 66 Pressure transducer 8~32Vdc

Model: P1514-100

Description: Heavy Industry Purpose Pressure Transducer, M10 Pressure Port

0 100 0 0.5 0.25 -40 to 125℃ Gauge 0.5~4.5V Oil,Water,Gas 66 Pressure transducer 8~32Vdc

Model: P1514-2000

Description: Heavy Industry Purpose Pressure Transducer, M10 Pressure Port

0 2000 0 0.5 0.25 -40 to 125℃ Gauge 0.5~4.5V Oil,Water,Gas 66 Pressure transducer 8~32Vdc

Model: P1601-0.1

Description: Heavy Industry & General Purpose Pressure Transducer

100 0 0 0.5 0.35 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1601-0.25

Description: Heavy Industry & General Purpose Pressure Transducer

250 0 0 0.5 0.35 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1601-0.5

Description: Heavy Industry & General Purpose Pressure Transducer

500 0 0 0.5 0.35 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1601-1

Description: Heavy Industry & General Purpose Pressure Transducer

1000 0 0 0.5 0.35 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1601-2.5

Description: Heavy Industry & General Purpose Pressure Transducer

2500 0 0 0.5 0.35 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1601-5

Description: Heavy Industry & General Purpose Pressure Transducer

5000 0 0 0.5 0.35 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1601-10

Description: Heavy Industry & General Purpose Pressure Transducer

10000 0 0 0.5 0.35 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1601-15

Description: Heavy Industry & General Purpose Pressure Transducer

15000 0 0 0.5 0.35 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1601-20

Description: Heavy Industry & General Purpose Pressure Transducer

20000 0 0 0.5 0.35 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1201-0.1

Description: Heavy Industry & General Purpose Pressure Transducer

100 0 0 0.5 0.2 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1201-0.25

Description: Heavy Industry & General Purpose Pressure Transducer

250 0 0 0.5 0.2 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1201-0.5

Description: Heavy Industry & General Purpose Pressure Transducer

500 0 0 0.5 0.2 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1201-1

Description: Heavy Industry & General Purpose Pressure Transducer

1000 0 0 0.5 0.2 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1201-2.5

Description: Heavy Industry & General Purpose Pressure Transducer

2500 0 0 0.5 0.2 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1201-5

Description: Heavy Industry & General Purpose Pressure Transducer

5000 0 0 0.5 0.2 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1201-10

Description: Heavy Industry & General Purpose Pressure Transducer

10000 0 0 0.5 0.2 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1201-15

Description: Heavy Industry & General Purpose Pressure Transducer

15000 0 0 0.5 0.2 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

Model: P1201-20

Description: Heavy Industry & General Purpose Pressure Transducer

20000 0 0 0.5 0.2 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~10V,0~5V Oil,Water,Gas 65 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 12~32Vdc 8~32Vdc

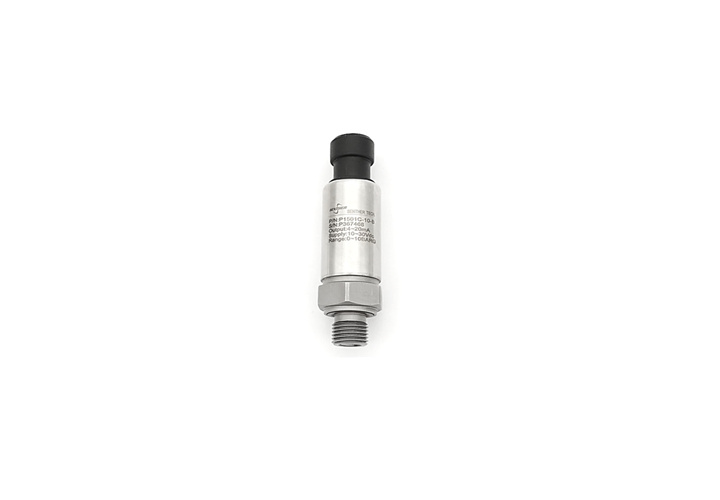

Model: P1501-3.5

Description: Heavy Industry Purpose Pressure Transducer, Packard connector

0 3.5 0 0.5 0.25 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1501-10

Description: Heavy Industry Purpose Pressure Transducer, Packard connector

0 10 0 0.5 0.25 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1501-100

Description: Heavy Industry Purpose Pressure Transducer, Packard connector

0 100 0 0.5 0.25 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1501-2000

Description: Heavy Industry Purpose Pressure Transducer, Packard connector

0 2000 0 0.5 0.25 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1502-3.5

Description: Heavy Industry Purpose Pressure Transducer, Connector pins output

0 3.5 0 0.5 0.25 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1502-10

Description: Heavy Industry Purpose Pressure Transducer, Connector pins output

0 10 0 0.5 0.25 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1502-100

Description: Heavy Industry Purpose Pressure Transducer, Connector pins output

0 100 0 0.5 0.25 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1502-2000

Description: Heavy Industry Purpose Pressure Transducer, Connector pins output

0 2000 0 0.5 0.25 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1503-3.5

Description: Heavy Industry Purpose Pressure Transducer, Integrated cable

0 3.5 0 0.5 0.25 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1503-10

Description: Heavy Industry Purpose Pressure Transducer, Integrated cable

0 10 0 0.5 0.25 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1503-100

Description: Heavy Industry Purpose Pressure Transducer, Integrated cable

0 100 0 0.5 0.25 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1503-2000

Description: Heavy Industry Purpose Pressure Transducer, Integrated cable

0 2000 0 0.5 0.25 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1504-3.5

Description: Heavy Industry Purpose Pressure Transducer, M12 connector

0 3.5 0 0.5 0.25 -20 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1504-10

Description: Heavy Industry Purpose Pressure Transducer, M12 connector

0 10 0 0.5 0.25 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1504-100

Description: Heavy Industry Purpose Pressure Transducer, M12 connector

0 100 0 0.5 0.25 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

Model: P1504-2000

Description: Heavy Industry Purpose Pressure Transducer, M12 connector

0 2000 0 0.5 0.25 -40 to 125℃ Gauge 4~20mA,1~5V,0.5~4.5V,0~5V Oil,Water,Gas 66 Pressure transducer 9~32Vdc 8~32Vdc 8~32Vdc 8~32Vdc

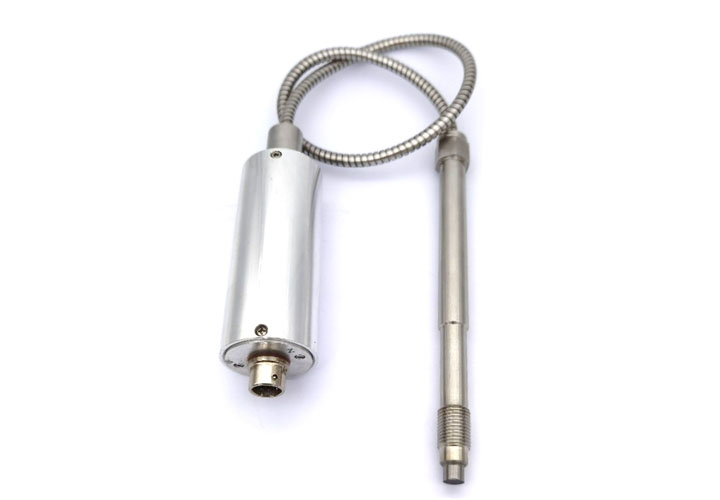

Model: P1591-100

Description: High temperature Pressure Transducer

0 100 0 0.5 0.35 -40 to 400℃ Gauge 4~20mA,0~10V,0~5V Oil,Water,Gas 66 Pressure transducer 24Vdc

Model: P1591-200

Description: High temperature Pressure Transducer

0 200 0 0.5 0.25 -40 to 400℃ Gauge 4~20mA,0~10V,0~5V Oil,Water,Gas 66 Pressure transducer 24Vdc

Model: P1591-350

Description: High temperature Pressure Transducer

0 350 0 0.5 0.25 -40 to 400℃ Gauge 4~20mA,0~10V,0~5V Oil,Water,Gas 66 Pressure transducer 24Vdc

Model: P1591-500

Description: High temperature Pressure Transducer

0 500 0 0.5 0.25 -40 to 400℃ Gauge 4~20mA,0~10V,0~5V Oil,Water,Gas 66 Pressure transducer 24Vdc

Model: P1591-700

Description: High temperature Pressure Transducer

0 700 0 0.5 0.25 -40 to 400℃ Gauge 4~20mA,0~10V,0~5V Oil,Water,Gas 66 Pressure transducer 24Vdc

Model: P1591-1000

Description: High temperature Pressure Transducer

0 1000 0 0.5 0.25 -40 to 400℃ Gauge 4~20mA,0~10V,0~5V Oil,Water,Gas 66 Pressure transducer 24Vdc
大图 X
图像仅供参考
请参阅产品规格
