In today's rapidly developing technology, various sensors are like sharp "antennae" that help us perceive and understand the world around us. Force ring sensors, as an important member of the sensor family, play an indispensable role in many fields. So, what exactly is a force ring sensor?

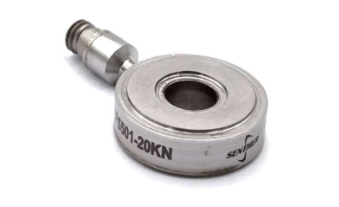

Senther F5501 piezoelectric ring sensor
Structurally, force ring sensors typically appear in a circular shape, which gives them a unique advantage in measuring force. Its core working principle is based on strain gauge technology and Hooke's law. Simply put, strain gauges are key components of force ring sensors. When an external force is applied to the force ring sensor, according to Hooke's law, the force ring will undergo elastic deformation. The strain gauges attached to the force ring will change their resistance value accordingly with the deformation of the force ring. By using specific circuits, such as Wheatstone bridge circuits, it is possible to accurately convert changes in resistance values into electrical signals. After a series of processing steps such as signal amplification, filtering, and analog-to-digital conversion, the magnitude of the force is finally output in intuitive digital or analog signal form, which is convenient for people to read and analyze.
The force ring sensor has the characteristic of high precision, which can accurately capture extremely small changes in force. Even extremely weak forces can be sensitively sensed and accurately measured, and the measurement accuracy can reach a high level. At the same time, its reliability is also excellent, with a relatively simple structural design and no overly complex components, which enables it to work stably for a long time in various complex and harsh environments, and is not prone to failure. Moreover, the force ring sensor has good compatibility and can be easily integrated with other control and measurement devices to jointly build an efficient automation control and monitoring system.
The application of force ring sensors is extremely extensive. In industrial production, it can monitor the locking force of screws on the production line in real time to ensure the quality of product assembly and avoid product quality problems caused by loose screws; In the field of scientific research, whether it is the precise measurement of small forces in physical experiments or the study of material stress properties during material testing, force ring sensors can demonstrate their capabilities; In medical equipment, it can assist medical instruments in accurately controlling the force applied to the human body, ensuring the safety and effectiveness of the treatment process.
With the continuous advancement of technology, force ring sensors are also constantly developing and innovating. In the future, they will emerge in more fields and bring more convenience and possibilities to human production and life.
