Among the numerous innovative achievements of modern technology, infrared pulse sensors are like shining stars, playing an important role in the field of health monitoring. The following will delve into the relevant content of infrared pulse sensors.

1、 Working principle

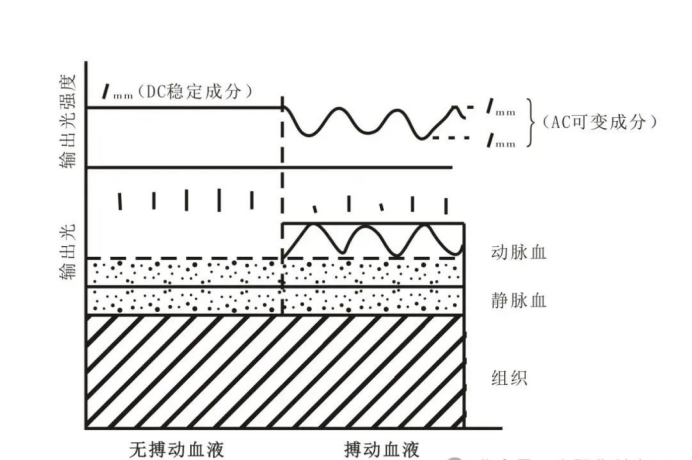

The infrared pulse sensor is mainly composed of infrared light-emitting diodes and photodetectors. It is based on photoplethysmography technology. When infrared light penetrates human tissue and reaches blood vessels, the periodic pumping of blood by the heart will cause changes in the volume of blood in the vessels, thereby altering the absorption and scattering of infrared light, resulting in changes in the intensity of reflected light The photoelectric detector captures this change and converts it into an electrical signal. After a series of operations such as amplification, filtering, and signal processing, the pulse wave features are finally extracted to accurately calculate important physiological parameters such as heart rate and blood oxygen saturation

2、 Historical origin

The exploration of the connection between light and human physiological phenomena has a long history. Since the 19th century, scientists have been paying attention to the interaction between light and human tissues. In the mid-20th century, with the rise of optoelectronic technology, research on using light to detect pulse signals gradually began. Although early experiments were relatively rudimentary, scientists discovered that infrared light could penetrate the skin and reach blood vessels, and the absorption characteristics of hemoglobin in the blood changed significantly for infrared light. This discovery laid the foundation for the development of infrared pulse sensors Subsequently, the prototype of infrared pulse sensors gradually took shape and was preliminarily applied in medical research experiments.

3、 Development History

-Initial stage: Early infrared pulse sensors had low accuracy, large size, and were extremely sensitive to environmental light and motion artifacts. They could only be used for basic physiological parameter monitoring in medical research institutions' laboratories, with large data errors and poor stability, which greatly limited their application scope and practicality

-Improvement stage: With the continuous advancement of electronic technology, electronic components are gradually achieving miniaturization, and signal processing algorithms have also been significantly improved. This greatly improves the accuracy and stability of the infrared pulse sensor, and also enhances its resistance to ambient light and motion artifacts. Therefore, it began to enter the clinical environment of hospitals, such as intensive care units and operating rooms, to assist doctors in more accurately monitoring patients' vital signs, providing more reliable data support for medical diagnosis and treatment

-Mature stage: Nowadays, infrared pulse sensors are highly mature, with many advantages such as high precision, low power consumption, and miniaturization. It can not only measure heart rate and pulse, but also calculate more physiological parameters through complex algorithms. At the same time, it is widely used in the consumer market and integrated into various wearable devices such as smart bracelets and smartwatches, allowing the general public to monitor their health data in real time, greatly promoting the popularization of health management concepts and becoming an important component of people's healthy lives

4、 Application scenarios

-In the field of healthcare, infrared pulse sensors play a crucial role in various departments of hospitals. For example, in cardiovascular medicine, doctors can use it to monitor patients' cardiac problems such as arrhythmia; In the intensive care unit, it can provide real-time feedback on patients' vital signs and issue alerts promptly in case of any abnormalities; In the field of sleep monitoring, it can work in conjunction with other devices to diagnose diseases such as sleep apnea syndrome. In addition, in home healthcare, it also provides convenience for self-management of chronic disease patients. Patients can upload data to hospitals through remote healthcare, and doctors can analyze and diagnose it, so that they can enjoy professional medical monitoring at home

-In the field of sports and fitness, infrared pulse sensors are a powerful assistant for athletes during the training process. The coach can adjust the training plan in a timely manner based on the changes in the athlete's heart rate detected by sensors, to avoid injuries caused by overtraining and ensure optimal training results. In daily fitness activities, the infrared pulse sensor in smart wearable devices can help fitness enthusiasts better control exercise intensity, making exercise more scientific and healthy

-In the field of smart home, infrared pulse sensors in smart home devices also have excellent performance. For example, products such as smart mattresses and smart seats that integrate infrared pulse sensors can monitor the health status of users without their noticing. Once an abnormality is detected, the device will automatically sound an alarm and promptly notify family members or emergency services, adding a reassuring guarantee to home life and making technology's protection of health more invisible and intimate

5、 Development Trends

-Higher accuracy and reliability: In the future, infrared pulse sensors will continue to pursue higher accuracy and reliability to meet people's strict requirements for the accuracy of health monitoring data. This will be achieved through optimizing optical design, improving signal processing algorithms, and other methods to further reduce measurement errors, effectively remove various interference factors, and ensure that sensors can still provide accurate physiological parameter data stably and reliably in complex environments, laying a solid foundation for medical diagnosis and health management

-Multi functional integration: Infrared pulse sensors are expected to integrate more functions and combine with other physiological monitoring technologies to achieve accurate measurement and comprehensive analysis of various physiological parameters such as blood pressure, respiratory rate, and cardiac output. By comprehensively evaluating the functional status of various systems in the human body, predicting disease risks in advance, and providing more personalized health management guidance plans for people

-Miniaturization and low power consumption: In order to better adapt to the development trend of wearable devices, infrared pulse sensors will continue to develop towards miniaturization and low power consumption. By utilizing advanced manufacturing technology and materials science, we can further reduce the size and weight of sensors, optimize circuit design, and lower energy consumption, enabling them to achieve seamless and continuous health monitoring. This will naturally integrate into people's daily lives and provide long-term and stable health monitoring services

-Integration with other technologies: Infrared pulse sensors will be deeply integrated with cutting-edge technologies such as the Internet of Things, big data, and artificial intelligence, creating a new era of intelligent health management. The large amount of health data collected by sensors will be transmitted in real-time to the cloud through the Internet of Things, and big data analysis technology will be used to explore the health trends and potential risks contained therein. Then, artificial intelligence algorithms will be used to achieve intelligent diagnosis and disease warning, providing users with timely and accurate medical advice and health guidance, truly realizing the intelligence and personalization of health management

Infrared pulse sensors have undergone a long development process and have wide and important applications in multiple fields. With the continuous innovation and progress of technology, it is believed that it will play a more crucial role in the fields of precision medicine and intelligent health management in the future, bringing more surprises and guarantees to human health life.
