What is a dual axis tilt sensor

As an important attitude sensor, the dual axis tilt sensor plays an irreplaceable role in many fields due to its high precision and stability characteristics. This article will delve into the working principle, application areas, and future development trends of dual axis tilt sensors, taking you to appreciate the unique charm of this technological eye.

Working principle of dual axis tilt sensor

A dual axis tilt sensor is a device used to measure the tilt angle of an object on two different axes. Its working principle is mainly based on internal accelerometers and gyroscopes for measurement and calculation. The accelerometer derives the tilt angle by detecting the acceleration of an object, while the gyroscope is used to detect the tilt angle of an object in the horizontal direction. By integrating the measurement values in these two directions, the dual axis tilt sensor can accurately calculate the tilt angle of the object.

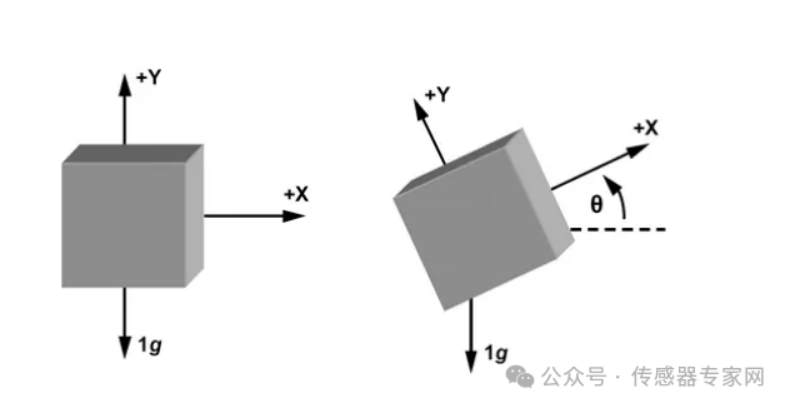

Specifically, when the sensor is in a horizontal position, the effect of gravity on the accelerometer is relatively small and can be ignored. But when the sensor is tilted, gravity will cause the accelerometer to produce a component that is proportional to the tilt angle. The sensor converts the gravitational acceleration measured by the accelerometer into a corresponding electronic signal, and uses an analog-to-digital converter (ADC) to convert the analog signal into a digital signal. Finally, the sensor calculates the tilt angle of the object based on the converted digital signal using algorithms such as trigonometric functions or Kalman filtering.

Application fields of dual axis tilt angle sensors

Dual axis tilt sensors have been widely used in multiple fields due to their high precision and stability characteristics.

1. Industry and Automation: In the fields of industrial robots, automation equipment, etc., dual axis tilt sensors can monitor the tilt angle of the equipment in real time and transmit this information to the control system for corresponding adjustments. This not only improves the operational accuracy of the equipment, but also reduces maintenance costs.

2. Aerospace: In the aerospace field, dual axis tilt sensors are used to measure the attitude of aircraft, ensuring their stability and safety during flight. Meanwhile, it can also provide critical data support for the navigation and control systems of aircraft.

3. Architecture and Road: In architecture and road engineering, dual axis tilt sensors can be used to measure key parameters such as the inclination of buildings and the slope of roads. These parameters are crucial for ensuring engineering quality and safety.

4. Transportation: In the field of transportation, dual axis tilt sensors are widely used for measuring the tilt angle of vehicles. By monitoring the tilt of the vehicle in real-time, it can help drivers detect and avoid dangerous situations such as rollover in a timely manner.

The Future Development of Dual Axis Tilt Angle Sensors

With the advancement of technology and the development of emerging application fields, the application of dual axis tilt sensors will become increasingly widespread. In the future, dual axis tilt sensors will pay more attention to the development trends of miniaturization, low power consumption, and intelligence. Meanwhile, with the popularization of IoT technology and the application of 5G communication technology, dual axis tilt sensors will be able to achieve more remote and real-time data transmission and monitoring. This will provide stronger support for the intelligent development of more fields.

summary

As an important attitude sensor, the dual axis tilt sensor plays an irreplaceable role in many fields due to its high precision and stability characteristics. From industry and automation to aerospace, from construction and roads to transportation and transportation, dual axis tilt sensors provide critical data support for the development of various industries with their unique advantages. In the future, with the advancement of technology and the development of emerging application fields, dual axis tilt sensors will pay more attention to the trend of miniaturization, low power consumption, and intelligence, contributing their own strength to the intelligent development of more fields. Let us look forward to this technological eye shining brighter in the future.
