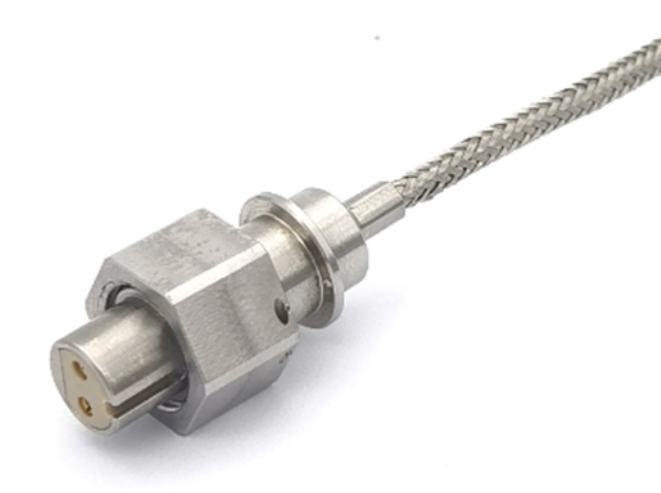

7/16-27高温配合电缆，可以配套于Senther 的 372P 高温振动传感器

特性

•简单即插即用

•低噪声导体

•灵活耐用

•坚固的电缆组件

•可靠性连接器

Electrical 电气特性

CAPACITANCE (CONDUCTOR TO SHIELD)@1kHz.......................32 pF/ft

RESISTANCE (CONDUCTOR)................................................................. 0.1 Ω/ft

INSULATION RESISTANCE (@100Vdc) ............................................. >1000 MΩ

INSULATION RESISTANCE @+482°C (@100Vdc)…………………… >100 MΩ

NOISE(PEAK TO PEAK)……………………………………………....…1.5pC MAX

Physical 物理特性

WEIGHT (CONNECTORS NOT INCLUDED) ………………………...... 10 Grams/ft

BEND RADIUS………………………………………....………… 10x Cable Diameter

CABLE PULL-OUT……………………………………………………….………. 20 lb

COUPLING TORQUE……………………………………..………1.5 (0.2) lb-in (Nm)

OPERATING TEMPERATURE.................................................... -70 to +650 °C

SHOCK LIMIT.............................................................................................. 5000 g
